Cliff's Arduino Skeches
Arduino skeches you can download here
I use I/O shields to mount the Arduino's and provide easy connections.
The servos are mounted using two methods. One for typical layouts and one for modules. The layout (crank) version depends on gravity hence the version for the modules.

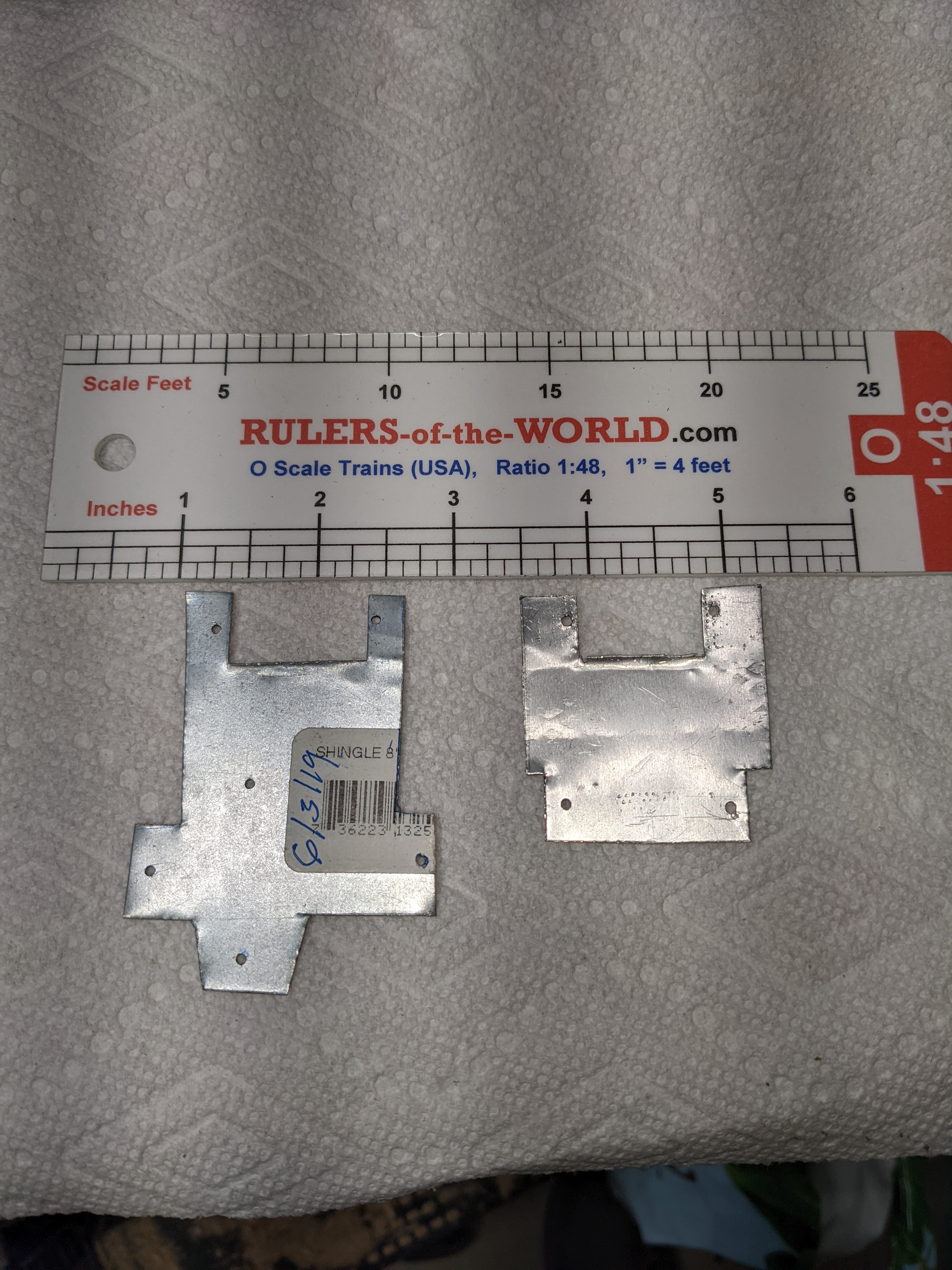

________Mount Templates__________

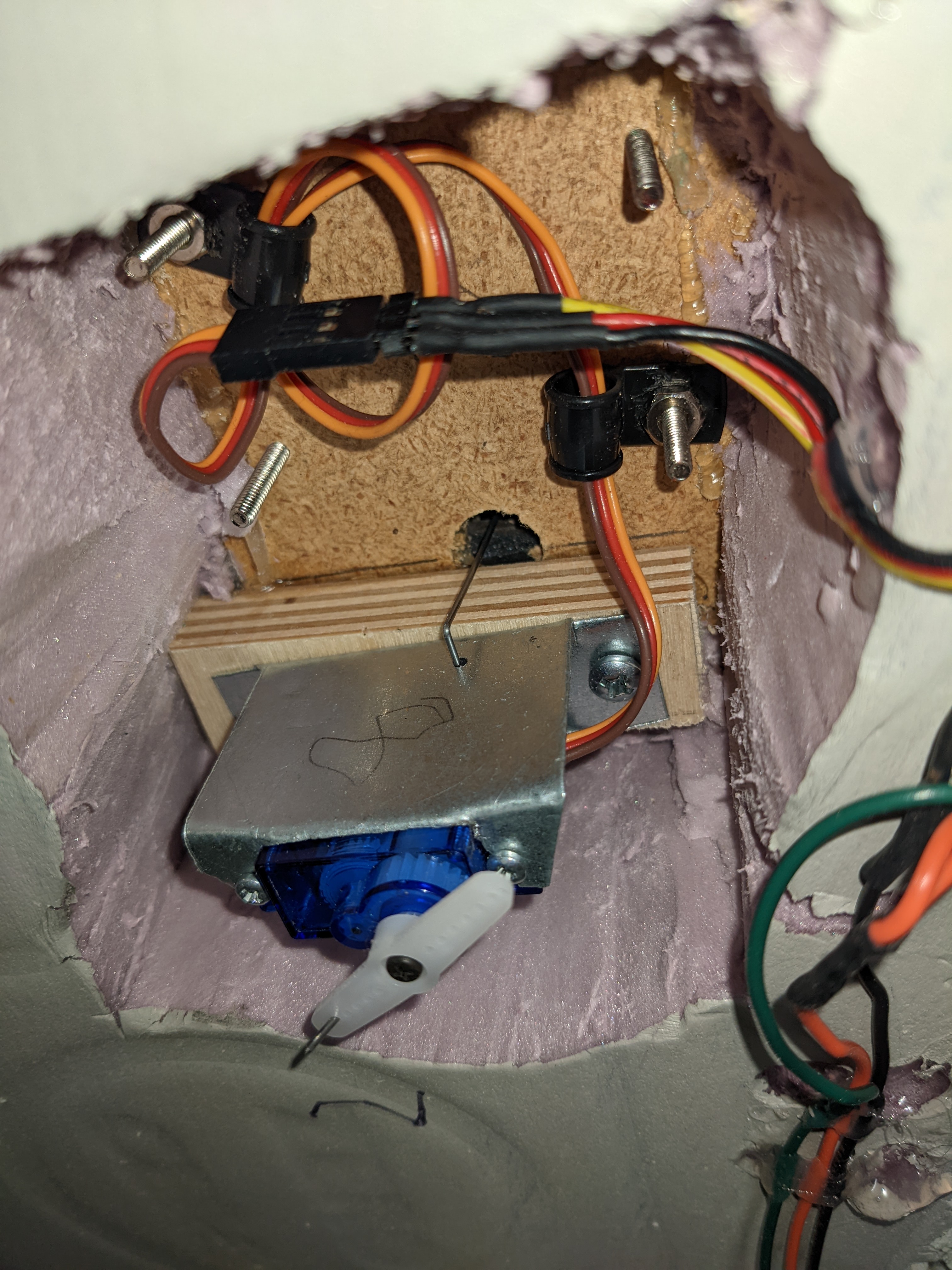

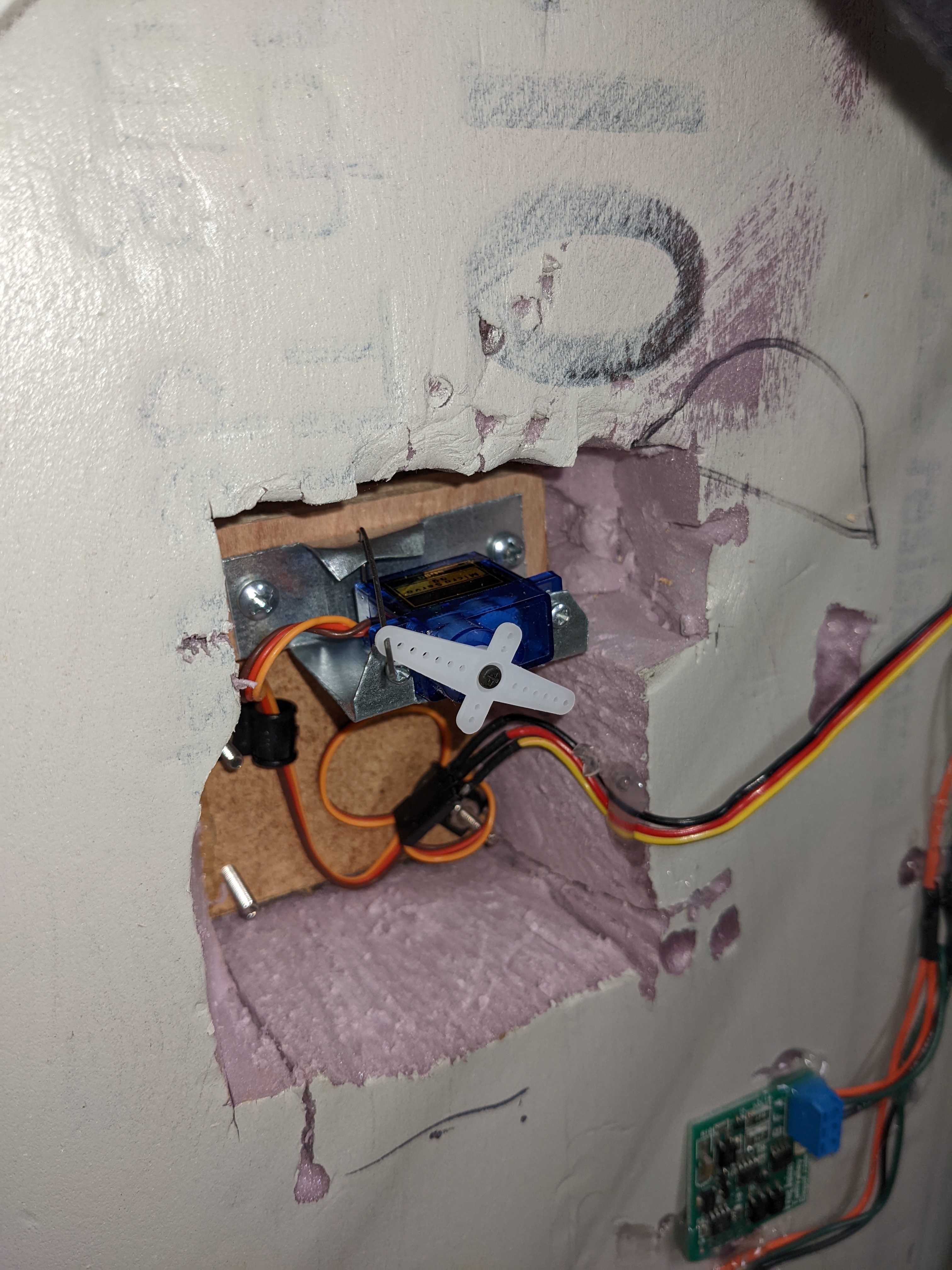

________Module Mount__________
7 Servo Detach Servo only Crank-turnout

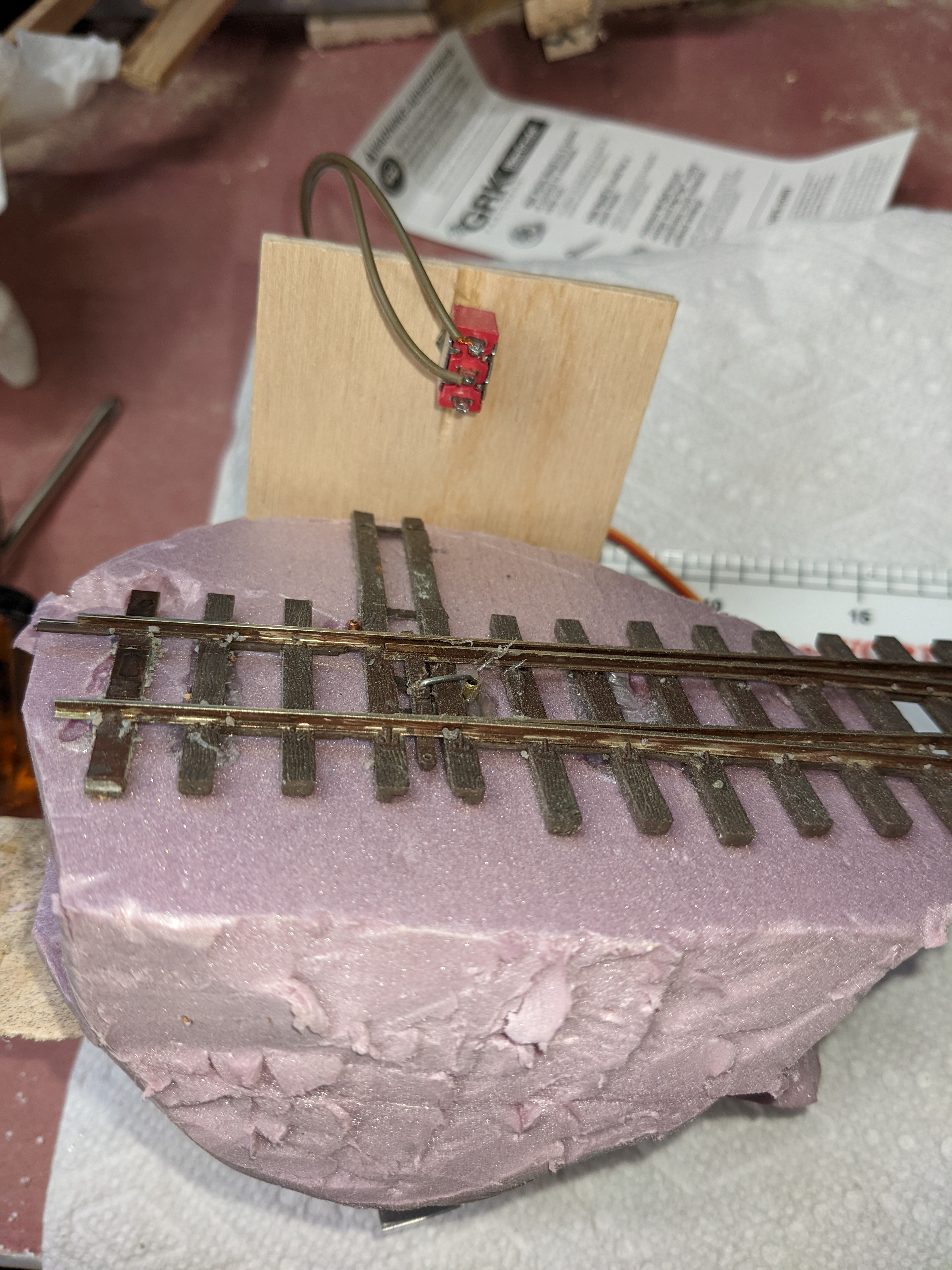

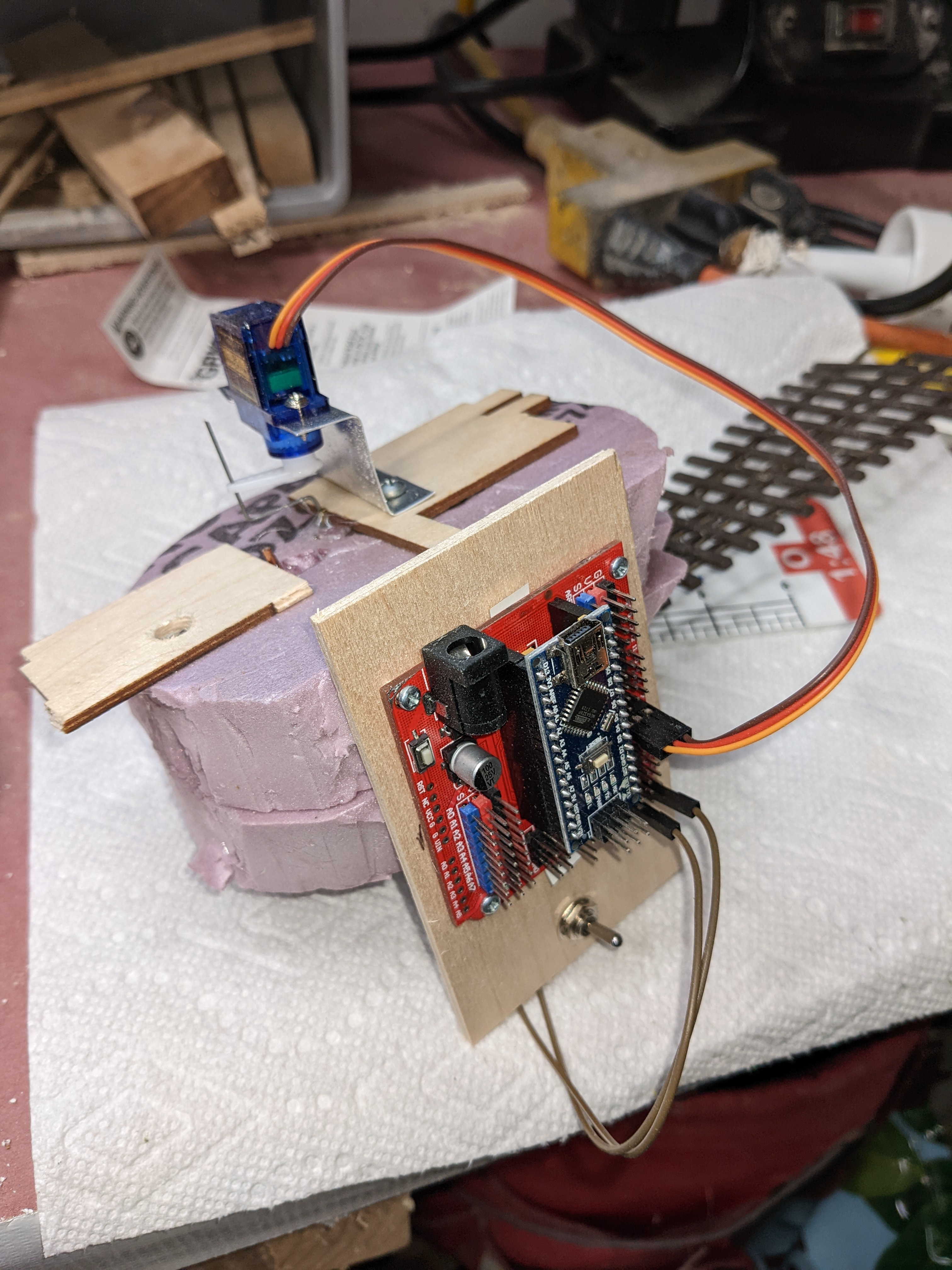

________Crank Mount__________
7 Servo Detach Servo only Crank-turnout
4 Servo Detach Servo only Pointer-turnout
Continuous rotation servo used on Ferry servo controled turntable
270 degree servo controled turntable
